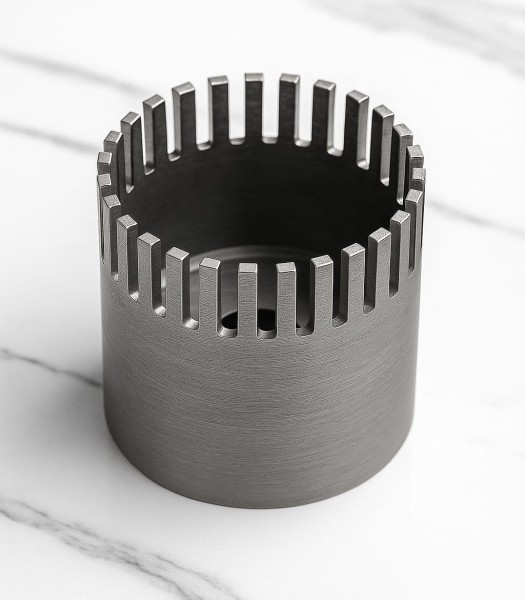

Bubble caps are specialized components used in the chemical filtering and distillation industry, particularly in distillation columns and gas-liquid contact systems. These cylindrical devices feature a unique design with slotted or perforated edges that facilitate the efficient separation and purification of liquid mixtures.

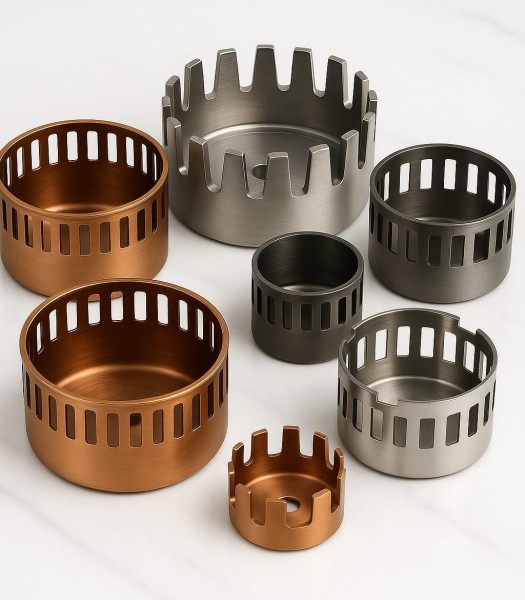

Available in various sizes and materials, bubble caps are engineered to enhance vapor-liquid contact, ensuring optimal mass transfer and separation efficiency in industrial processes. Manufactured by Kalyros Engineering LLP, these bubble caps are crafted with precision and tailored to meet diverse industrial needs.

How It’s Used

Bubble caps are installed on trays within distillation columns. As vapor rises through the column, it passes through the riser tubes beneath the caps and is directed downward through the slots, creating bubbles that interact with the liquid on the tray. This intimate contact between vapor and liquid promotes effective separation based on differing boiling points, making bubble caps essential for refining and purifying substances.

Where It’s Used

Bubble caps are widely utilized across multiple industries, including -

• Petrochemical Industry - For refining crude oil and separating hydrocarbons.
• Chemical Processing - To enhance reaction efficiency and isolate compounds.
• Pharmaceutical Manufacturing - For purifying active ingredients.
• Oil Refining - To separate hydrocarbon fractions.
• Alcohol Production - To ensure purity in spirits and industrial alcohol.
• Gas Processing - For efficient gas-liquid separation.

Their versatility makes them suitable for applications requiring precise separation under varying temperatures, pressures, and flow rates.

How It’s Made

Bubble caps are manufactured by Kalyros Engineering LLP using advanced precision engineering techniques -

• Material Selection - High-quality metals or alloys are chosen based on the application.
• Fabrication - The process involves precision stamping, CNC machining, or injection molding to create the cylindrical shape and slots.
• Slot Design - Slots or perforations are carefully engineered to optimize gas-liquid interaction.
• Assembly - Caps are fitted over riser tubes and integrated into tray plates, ensuring a tight fit to prevent leaks.
• Quality Control - Rigorous testing, including bubble point tests, ensures durability and performance under industrial conditions.

Materials and Grades

Bubble caps from Kalyros Engineering LLP can be crafted from a wide range of materials to suit different environmental and operational demands:

• Stainless Steel (e.g., SS 304, SS 316L): Offers excellent corrosion resistance and durability.
• Carbon Steel: Cost-effective for less corrosive environments.
• Alloys:
  • Monel: Highly resistant to corrosion by acids and seawater, ideal for harsh environments.
  • Inconel: Excels in high-temperature and corrosive settings, such as those involving sulfuric acid.
  • Hastelloy: Superior resistance to pitting and crevice corrosion in aggressive chemical processes.
  • Duplex Steel: Combines high strength and corrosion resistance for demanding applications.
  • Titanium: Exceptional corrosion resistance and lightweight properties for specialized uses.
  • Copper Alloys: Used in specific applications requiring thermal conductivity.
  • Mild Steel (MS): Suitable for general-purpose use with appropriate coatings.
  • PVDF (Polyvinylidene Fluoride): A polymer option for corrosion resistance in acidic environments.

Grades are selected based on chemical compatibility, temperature, pressure, and corrosion resistance requirements, with customization available to meet unique needs.

How It Works

The functionality of bubble caps relies on their innovative design:

• Vapor Flow: Vapor rises through riser tubes and enters the cap.
• Bubble Formation: The vapor exits through the slotted openings, creating bubbles as it passes through the liquid on the tray.
• Mass Transfer: The bubbling action ensures thorough mixing and contact, facilitating the separation of components based on their boiling points.
• Liquid Flow: Liquid flows down through downcomers to the next tray, maintaining a continuous process.
• Stability: The design prevents weeping (liquid leakage) and handles variable flow rates effectively, ensuring consistent performance.

This mechanism enhances separation efficiency, reduces energy consumption, and minimizes operational costs.

Key Features and Benefits

• High Efficiency: Promotes uniform vapor-liquid distribution for optimal mass transfer.
• Versatility: Adapts to a wide range of operating conditions (temperature, pressure, flow rates).
• Durability: Made from robust materials, resistant to corrosion and wear.
• Energy Savings: Optimized design reduces system pressure drop.
• Cost-Effectiveness: Long lifespan and low maintenance requirements lower operational costs.
• Customizability: Available in various sizes (e.g., 50mm, 80mm, 100mm, 150mm) and configurations to meet specific needs.

Requirements and Considerations

• Material Compatibility: Select materials based on the chemical medium and operating conditions.
• Slot Design: Adjust slit width and spacing to optimize gas-liquid mixing and pressure drop.
• Gas Ejection Velocity: Control velocity to avoid liquid carryover or damage to the caps.
• Pressure Drop: Maintain within a reasonable range for energy efficiency.
• Installation: Ensure a tight fit and clean surfaces to prevent leaks; avoid overtightening to protect materials.
• Manufacturer Expertise: Partner with Kalyros Engineering LLP for tailored solutions and reliable support.

Why Choose Kalyros Engineering LLP Bubble Caps?

At Kalyros Engineering LLP, we pride ourselves on precision-engineered bubble caps using premium materials and advanced manufacturing techniques. We offer customized solutions to meet your specific distillation and filtering needs, backed by a commitment to quality, durability, and customer satisfaction. Whether you require standard sizes or bespoke designs, our expert team ensures optimal performance and efficiency for your industrial processes.

---

Enhance your distillation and filtering operations with our high-quality bubble caps from Kalyros Engineering LLP. Contact us today to discuss your requirements and benefit from our exceptional solutions. Let’s optimize your production efficiency together!
